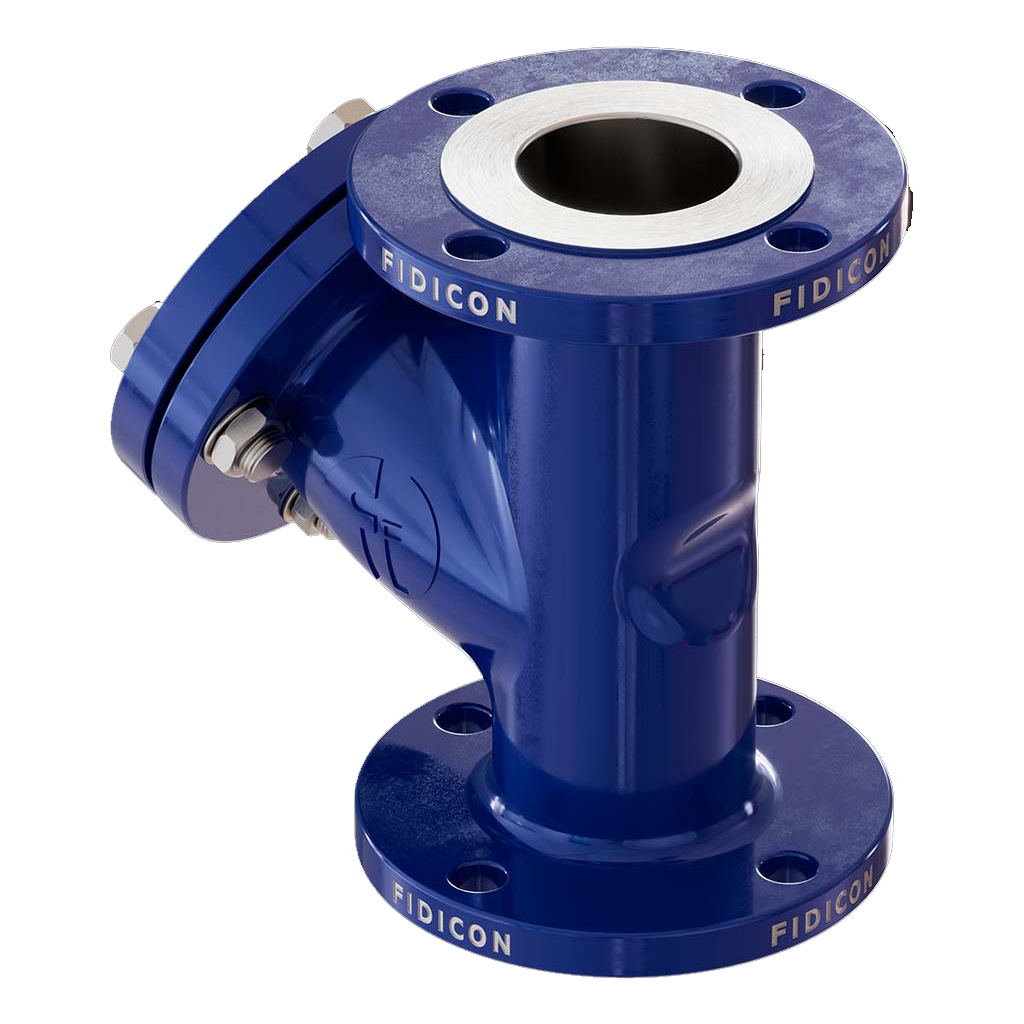

A Y-Type Strainer is a mechanical filtration device designed to remove unwanted solid particles, debris, rust, scale, and other contaminants from liquid, gas, or steam pipelines. Named for its distinctive Y-shaped body design, the strainer protects pumps, valves, flow meters, control equipment, and other critical process components from damage caused by foreign particles.
Y-Type Strainers are widely used in industries such as chemical processing, oil & gas, power generation, pharmaceuticals, food & beverage, water treatment, HVAC, and petrochemical plants. Their compact design, low pressure drop, and easy maintenance make them an ideal solution for continuous filtration in pressurized piping systems.
Manufactured from high-quality materials and equipped with precision-engineered perforated or mesh screens, Y-Type Strainers ensure reliable filtration performance and extended equipment life.
Applications of Y-Type Strainer
- Water and Wastewater Treatment Plants
- Chemical and Petrochemical Industries
- Oil & Gas Processing Facilities
- Power Generation Plants
- Pharmaceutical Manufacturing
- Food & Beverage Processing
- HVAC and Utility Systems
- Steam and Condensate Lines
- Pump and Valve Protection Systems
Features of Y-Type Strainer/h1>
- Efficient removal of solid contaminants from process fluids
- Compact Y-shaped design for easy installation
- Low pressure loss across the strainer
- Robust and corrosion-resistant construction
- Easy screen removal and cleaning
- Suitable for liquid, gas, and steam applications
- Available in various mesh sizes and filtration grades
- Long service life with minimal maintenance
Available Options
-
Fine Mesh and Perforated Screens
-
Blow-Off Connection for Easy Cleaning
-
Magnetic Insert for Ferrous Particle Removal
-
Duplex Strainer Arrangement
-
High-Pressure and High-Temperature Designs
-
Special Alloy Construction (Monel, Hastelloy, Duplex SS)
-
Custom Mesh Sizes and Filtration Ratings
-
Drain Plug and Vent Connections
Specifications
| Parameter | Details |
|---|---|
| Product Name | Y-Type Strainer |
| Size Range | 15 NB to 600 NB (½" to 24") |
| Body Material | Cast Iron, Cast Steel, SS 304, SS 316, SS 316L, Duplex Stainless Steel |
| Screen Material | SS 304, SS 316, SS 316L |
| Filtration Element | Perforated Screen / Wire Mesh |
| Mesh Size | 20 to 500 Mesh (Application Dependent) |
| End Connection | Flanged, Threaded, Socket Weld, Butt Weld |
| Flange Standard | ANSI, ASME, DIN, BS, IS |
| Pressure Rating | ANSI 150#, 300#, 600#, 900# |
| Operating Temperature | Up to 400°C (Depending on Material) |
| Operating Pressure | Up to 100 Bar |
| Installation Position | Horizontal or Vertical (Flow Direction Consideration Required) |
| Cover Type | Bolted Cover |
| Gasket Material | PTFE, Graphite, CAF, Spiral Wound |
| Testing | Hydrostatic and Leakage Tested |
| Compliance | ASME, ANSI, DIN, ISO Standards |
Benefits
Y-Type Strainers provide an economical and effective method of protecting valuable process equipment from contamination and damage. By removing suspended particles from the flow stream, they help reduce maintenance costs, improve system reliability, extend equipment life, and maintain process efficiency. Their durable construction, ease of maintenance, and versatility make them a preferred filtration solution across a wide range of industrial applications.
