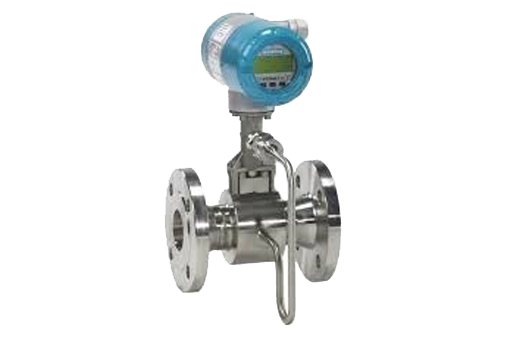

A Vortex Flow Meter is a highly reliable and versatile flow measurement instrument used to measure the flow rate of liquids, gases, and steam in industrial processes. It operates on the vortex shedding principle, where a bluff body placed in the flow stream creates alternating vortices. The frequency of these vortices is directly proportional to the fluid velocity, enabling accurate flow measurement.
Vortex Flow Meters are widely used across industries such as oil & gas, power generation, chemical processing, pharmaceuticals, food & beverage, HVAC, and water treatment. Their robust design, absence of moving parts, and ability to handle a wide range of process conditions make them an ideal choice for demanding applications.
Engineered for precision and long-term stability, Vortex Flow Meters provide accurate measurement of volumetric flow, mass flow, and energy consumption, especially in steam and utility applications.
Applications of Vortex Flow Meter
- Steam Flow Measurement
- Compressed Air Systems
- Chemical and Petrochemical Industries
- Power Generation Plants
- Food & Beverage Processing
- Pharmaceutical Manufacturing
- HVAC and Utility Services
- Water and Wastewater Treatment Plants
- Oil & Gas Processing Facilities
Features of Vortex Flow Meter
- Accurate measurement of liquids, gases, and steam
- No moving parts for low maintenance and long service life
- High reliability and repeatability
- Suitable for high-pressure and high-temperature applications
- Wide measuring range and excellent turndown ratio
- Low pressure loss compared to traditional flow measurement devices
- Digital display with advanced communication options
- Compact and rugged industrial design
Available Options
-
Integrated Temperature and Pressure Compensation
-
Mass Flow and Energy Measurement
-
Compact and Remote-Mounted Versions
-
Battery-Powered Models
-
Explosion-Proof / Flameproof Designs
-
Steam Flow Monitoring Packages
-
HART and Modbus Communication
-
Customized Process Connections
Specifications
| Parameter | Details |
|---|---|
| Product Name | Vortex Flow Meter |
| Measuring Principle | Vortex Shedding Technology |
| Size Range | 15 NB to 300 NB (½" to 12") |
| Measuring Media | Liquids, Gases, Steam |
| Accuracy | ±0.75% of Reading (Liquids), ±1.0% of Reading (Gases & Steam) |
| Repeatability | ±0.2% of Reading |
| Flow Velocity Range | Liquid: 0.5–10 m/s, Gas: 4–80 m/s, Steam: 7–80 m/s |
| Body Material | SS 304, SS 316, Carbon Steel |
| Sensor Material | Stainless Steel |
| Connection Type | Flanged, Wafer, Threaded |
| Operating Pressure | Up to 100 Bar (Model Dependent) |
| Operating Temperature | -40°C to +350°C (Higher on Request) |
| Display | LCD Digital Display |
| Output Signals | 4–20 mA, Pulse, Frequency, HART, Modbus, RS485 |
| Power Supply | 24 VDC / 230 VAC / Battery Powered |
| Protection Class | IP65, IP67, IP68 |
| Flow Direction | Uni-Directional |
| Compliance | CE, ISO, ASME, DIN Standards |
Benefits
Vortex Flow Meters offer an economical and dependable solution for measuring liquids, gases, and steam with high accuracy and minimal maintenance. Their robust construction, resistance to wear, and ability to operate under harsh process conditions make them suitable for a wide range of industrial applications. By providing precise flow data and long-term measurement stability, Vortex Flow Meters help optimize process efficiency, energy management, and operational performance.
