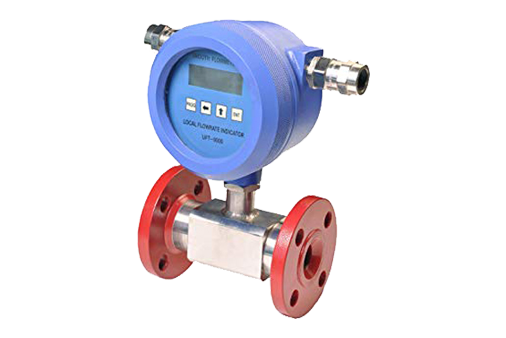

A Turbine Flow Meter is a precision flow measurement instrument designed to accurately measure the flow rate of clean liquids, gases, and low-viscosity fluids. It operates on the principle of a multi-bladed rotor mounted within the flow stream. As the fluid passes through the meter, the rotor rotates at a speed proportional to the flow velocity. The rotational speed is detected by a magnetic or electronic sensor and converted into a flow rate signal.
Known for their high accuracy, fast response time, and excellent repeatability, Turbine Flow Meters are widely used in industries such as oil & gas, chemical processing, pharmaceuticals, food & beverage, water treatment, and fuel monitoring systems. These flow meters are particularly suitable for applications requiring precise flow measurement and process control.
With robust construction and advanced sensing technology, Turbine Flow Meters provide reliable performance in demanding industrial environments while ensuring long-term operational efficiency.
Applications of Turbine Flow Meter
- Oil & Gas Industry
- Fuel Measurement and Distribution
- Chemical Processing Plants
- Pharmaceutical Manufacturing
- Food & Beverage Processing
- Water Treatment Systems
- Solvent and Chemical Transfer
- Process Automation and Control Systems
Features of Turbine Flow Meter
- High accuracy and excellent repeatability
- Fast response to flow changes
- Suitable for liquids, gases, and low-viscosity fluids
- Compact and lightweight design
- Low maintenance requirements
- Wide flow measurement range
- Digital output for integration with control systems
- Durable construction for industrial applications
Available Options
-
Digital Flow Totalizer
-
Batch Control System Integration
-
High-Pressure Designs
-
Sanitary / Hygienic Models for Food & Pharma Applications
-
Explosion-Proof / Flameproof Versions
-
Remote Display and Monitoring
-
Customized Flow Ranges and Connections
-
Advanced Communication Protocols
Specifications
| Parameter | Details |
|---|---|
| Product Name | Turbine Flow Meter |
| Measuring Principle | Turbine Rotor Velocity Measurement |
| Size Range | 6 NB to 300 NB (¼" to 12") |
| Measuring Media | Clean Liquids, Gases, Low-Viscosity Fluids |
| Accuracy | ±0.2% to ±1.0% of Reading |
| Repeatability | ±0.1% of Reading |
| Flow Range | Application-Specific |
| Body Material | SS 304, SS 316, Carbon Steel, Aluminum |
| Rotor Material | SS 316, Tungsten Carbide |
| Bearing Material | Tungsten Carbide, Ceramic, Sapphire |
| Connection Type | Threaded, Flanged, Tri-Clamp, Wafer |
| Operating Pressure | Up to 250 Bar (Model Dependent) |
| Operating Temperature | -20°C to +200°C |
| Output Signals | Pulse, Frequency, 4–20 mA, RS485, Modbus |
| Display | Local LCD Display (Optional) |
| Power Supply | 24 VDC / Battery Powered |
| Protection Class | IP65, IP67, IP68 |
| Installation | Horizontal or Vertical |
| Compliance | CE, ISO, ASME, DIN Standards |
Benefits
Turbine Flow Meters provide highly accurate and repeatable flow measurement, making them ideal for custody transfer, batching, process control, and fluid monitoring applications. Their quick response, robust construction, and compatibility with automation systems help improve process efficiency, reduce operational costs, and ensure consistent product quality. With proper installation and maintenance, Turbine Flow Meters deliver dependable performance and long service life across a wide range of industrial applications.
