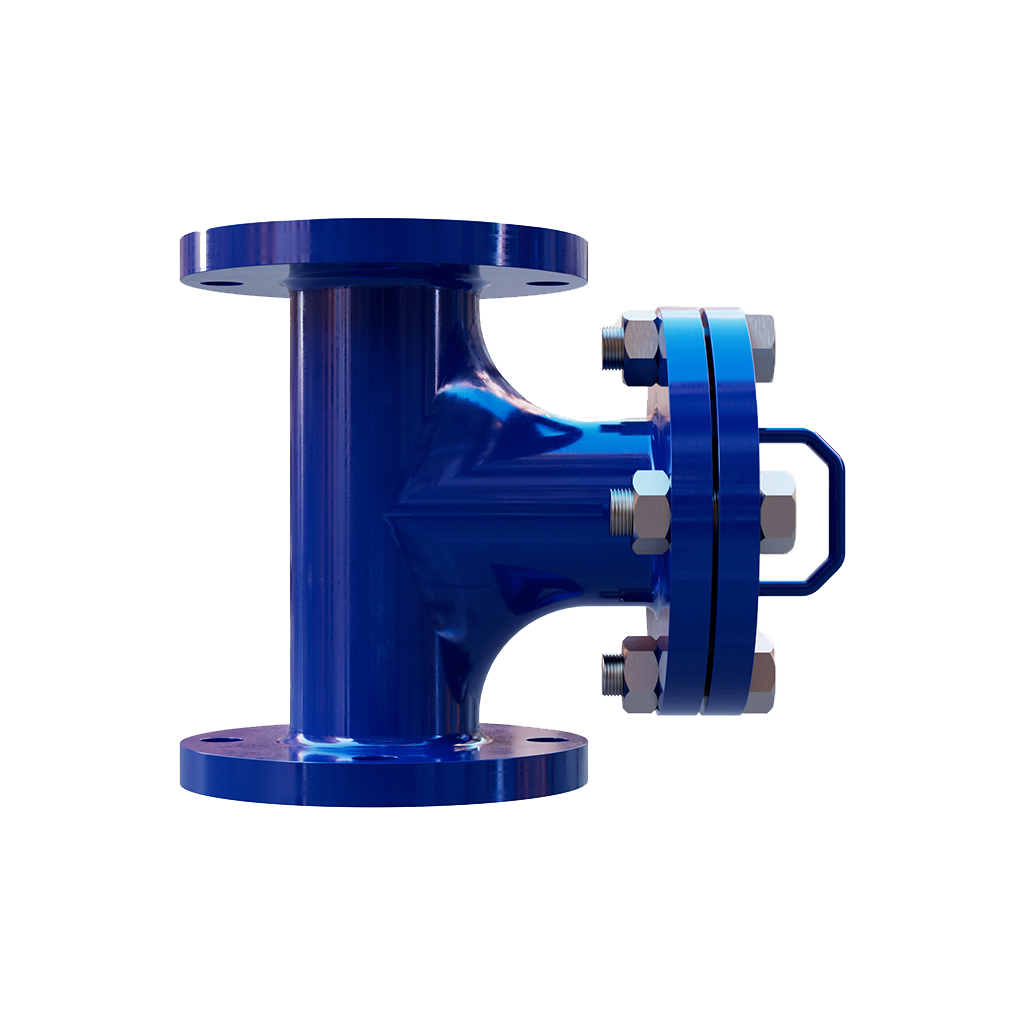

A T-Type Strainer is a high-capacity industrial filtration device designed to remove solid particles, debris, rust, scale, and other contaminants from liquid, gas, and steam pipelines. Named for its distinctive "T" shaped body configuration, this strainer provides a larger filtration area and higher dirt-holding capacity than conventional Y-Type Strainers, making it ideal for high-flow and heavy-duty industrial applications.
T-Type Strainers are widely used in industries such as oil & gas, petrochemicals, power generation, chemical processing, pharmaceuticals, water treatment, and marine systems. They are installed to protect pumps, valves, flow meters, compressors, turbines, heat exchangers, and other critical equipment from damage caused by foreign particles in the process stream.
Designed for efficient filtration and easy maintenance, T-Type Strainers offer low pressure drop, high flow capacity, and convenient access for cleaning or replacement of the filter element, ensuring uninterrupted system performance and extended equipment life.
Applications of T-Type Strainer
- Oil & Gas Processing Plants
- Petrochemical Industries
- Power Generation Facilities
- Chemical Manufacturing Plants
- Water and Wastewater Treatment Systems
- Marine and Offshore Installations
- HVAC and Utility Services
- Steam and Condensate Systems
- Pump, Valve, and Heat Exchanger Protection
Features of T-Type Strainer
- Large filtration area for enhanced dirt-holding capacity
- Low pressure drop and high flow efficiency
- Suitable for liquid, gas, and steam applications
- Heavy-duty construction for demanding industrial services
- Easy access for screen cleaning and maintenance
- Available in horizontal and vertical configurations
- Wide range of mesh sizes and filtration options
- Long service life with minimal maintenance requirements
Available Options
-
Simplex T-Type Strainers
-
Duplex T-Type Strainers for Continuous Filtration
-
Magnetic Filter Inserts
-
Fine Mesh and Multi-Layer Screens
-
Quick Opening Cover Design
-
Drain and Vent Connections
-
High-Pressure and High-Temperature Models
-
Special Alloy Construction (Monel, Hastelloy, Inconel, Duplex SS)
-
Customized Filtration Ratings and Dimensions
Specifications
| Parameter | Details |
|---|---|
| Product Name | T-Type Strainer |
| Type | T-Pattern Industrial Strainer |
| Size Range | 25 NB to 1500 NB (1" to 60") |
| Body Material | Cast Iron, Cast Steel, SS 304, SS 316, SS 316L, Duplex Stainless Steel |
| Screen Material | SS 304, SS 316, SS 316L |
| Filtration Element | Perforated Screen, Wire Mesh Screen, Combination Screen |
| Mesh Size | 20 to 500 Mesh (Application Dependent) |
| Perforation Size | 1 mm to 25 mm |
| End Connection | Flanged, Butt Weld, Socket Weld |
| Flange Standard | ANSI, ASME, DIN, BS, IS |
| Pressure Rating | ANSI 150#, 300#, 600#, 900#, 1500# |
| Operating Pressure | Up to 150 Bar |
| Operating Temperature | Up to 500°C (Depending on Material Selection) |
| Cover Type | Bolted Cover / Quick Opening Cover |
| Gasket Material | PTFE, Graphite, Spiral Wound, CAF |
| Installation | Horizontal or Vertical |
| Testing | Hydrostatic, Leakage & Dimensional Testing |
| Compliance | ASME, ANSI, DIN, ISO Standards |
Benefits
T-Type Strainers provide highly efficient filtration while maintaining low pressure loss and high flow capacity. Their large screen area reduces maintenance frequency and extends service life, making them ideal for demanding industrial processes. By protecting valuable equipment from contamination and particulate damage, T-Type Strainers help improve system reliability, reduce downtime, lower maintenance costs, and enhance overall operational efficiency.
