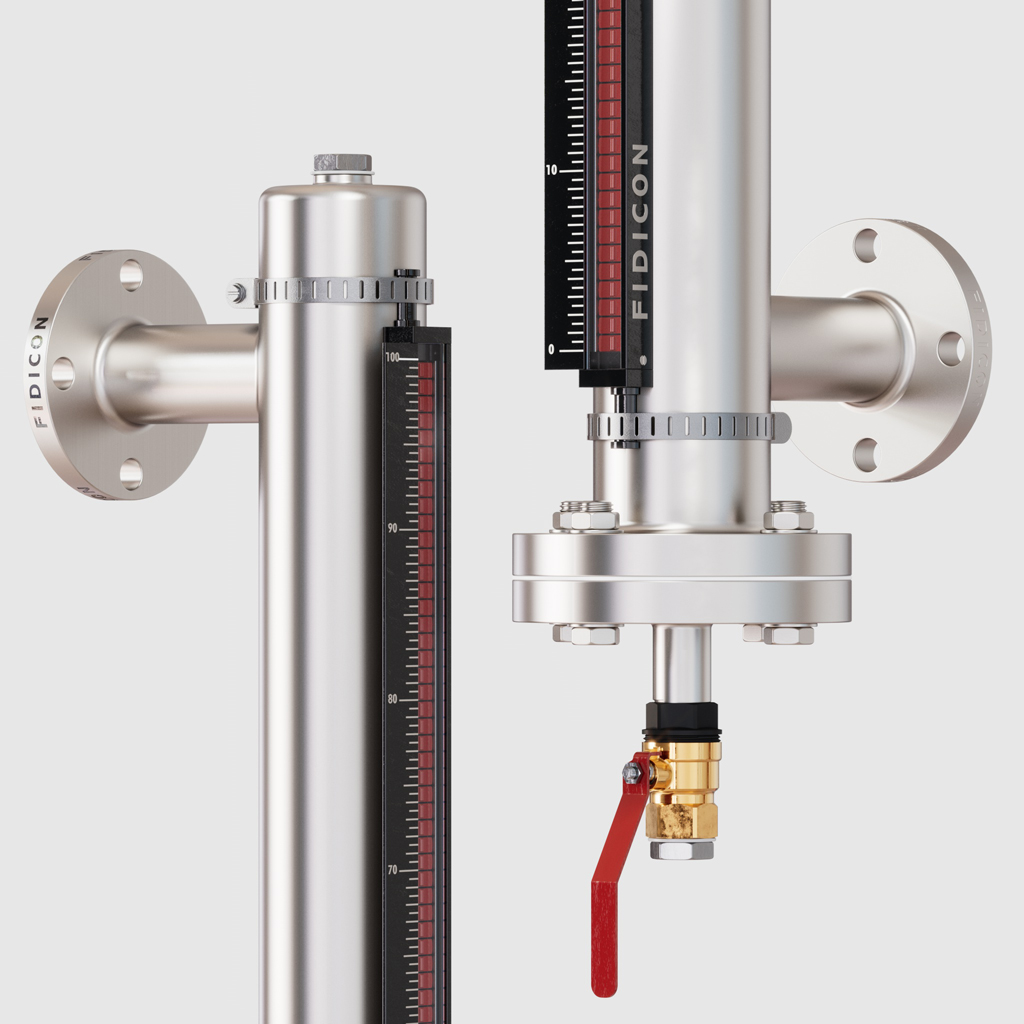

A Side Mounted Magnetic Level Indicator (MLI) is a highly reliable and maintenance-free level measurement device designed for continuous visual monitoring of liquid levels in tanks, vessels, reactors, boilers, and storage systems. It operates on the principle of magnetic coupling, where a float containing a permanent magnet moves within a chamber according to the liquid level. This movement is transmitted magnetically to an external indicator, providing accurate and clear level indication without direct contact between the process fluid and the display system.
Side Mounted Magnetic Level Indicators are widely used in industries such as oil & gas, petrochemicals, chemicals, pharmaceuticals, power generation, food processing, and water treatment. Their rugged construction and ability to operate under high-pressure, high-temperature, and corrosive conditions make them an ideal choice for demanding industrial applications.
The indicator provides a continuous visual display of liquid level through a magnetic flap or roller assembly that changes color as the float moves, ensuring easy level monitoring from a safe distance.
Applications of Side Mounted Magnetic Level Indicator
- Storage Tanks and Process Vessels
- Chemical and Petrochemical Plants
- Oil & Gas Processing Facilities
- Refineries
- Pharmaceutical Industries
- Power Generation Plants
- Food & Beverage Processing
- Water and Wastewater Treatment Systems
- Boiler and Condensate Systems
Features of Side Mounted Magnetic Level Indicator
- Continuous and accurate liquid level indication
- Magnetic coupling for leak-free and non-contact operation
- Suitable for high-pressure and high-temperature applications
- Clear and highly visible level display
- No external power supply required for local indication
- Maintenance-free operation with no moving external parts
- Suitable for corrosive, toxic, and hazardous fluids
- Available with level switches and transmitters
Available Options
-
Magnetic Flap Display
-
Bi-Color Roller Indicator
-
4–20 mA Continuous Level Transmitter
-
High and Low Level Switches
-
Steam Jacketed Chamber Design
-
Frost Shield for Cryogenic Applications
-
Explosion-Proof Accessories
-
Customized Chamber Lengths and Connections
-
Special Alloy Construction (Hastelloy, Monel, Titanium)
Specifications
| Parameter | Details |
|---|---|
| Product Name | Side Mounted Magnetic Level Indicator |
| Measuring Principle | Magnetic Float and Flap Indication |
| Mounting Type | Side Mounted |
| Measuring Range | Up to 10 Meters (Higher on Request) |
| Chamber Material | SS 304, SS 316, SS 316L, Carbon Steel, PP, PVC |
| Float Material | SS 316, Titanium, PP, PVDF |
| Indicator Type | Magnetic Flap / Roller Indicator |
| Connection Type | Flanged, Threaded |
| Connection Size | ½" to 4" NB |
| Operating Pressure | Vacuum to 100 Bar |
| Operating Temperature | -40°C to +450°C (Depending on Design) |
| Accuracy | ±10 mm or Better |
| Display Scale | mm, cm, Inches, Percentage, Volume |
| Power Requirement | Not Required for Local Indication |
| Optional Outputs | Reed Switches, Level Alarms, 4–20 mA Transmitter |
| Protection Class | IP65 / IP67 (for Accessories) |
| Compliance | ASME, DIN, ISO, Industrial Standards |
Benefits
Side Mounted Magnetic Level Indicators provide safe, accurate, and reliable level monitoring without requiring direct contact between the process fluid and the indication system. Their leak-proof construction, excellent visibility, and compatibility with automation systems make them ideal for critical industrial applications. By offering continuous level indication and optional remote monitoring capabilities, these indicators help improve process safety, operational efficiency, and inventory management while reducing maintenance requirements and downtime.
