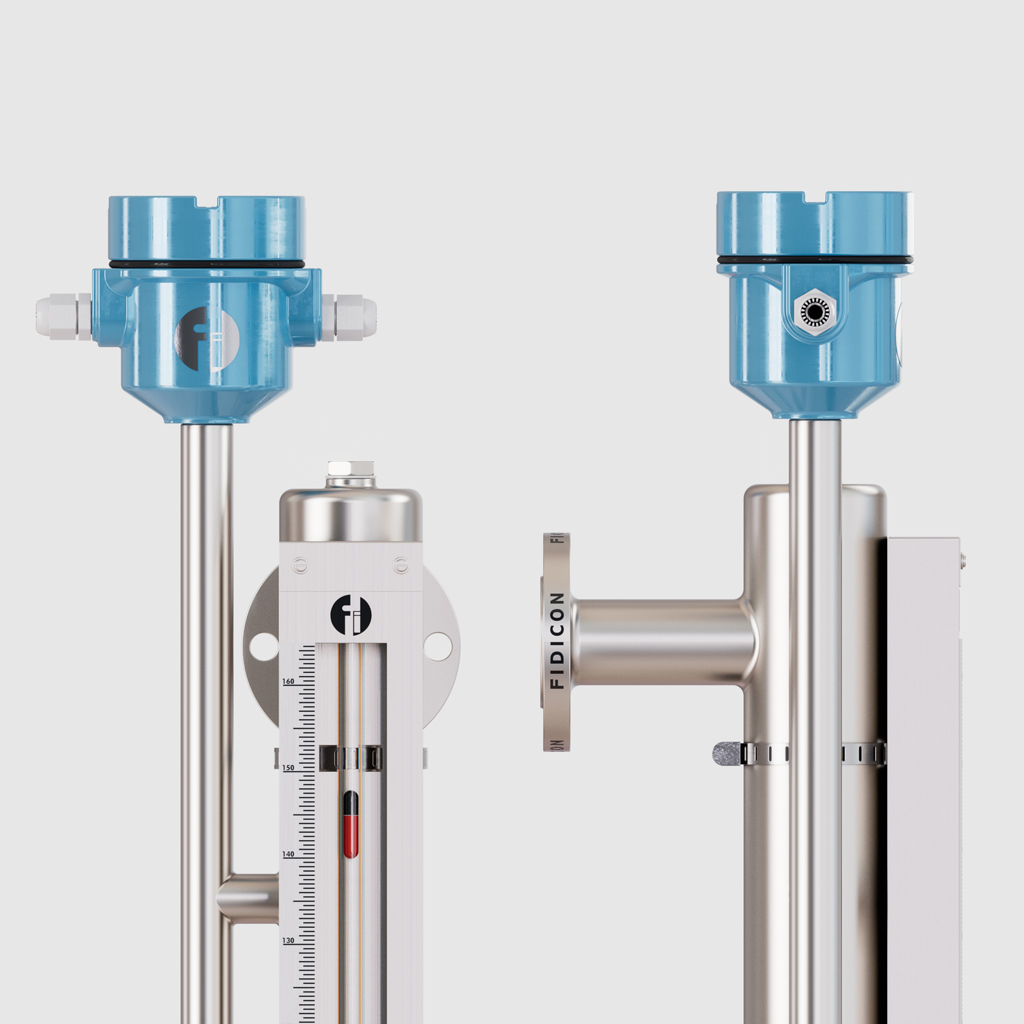

A Side Mounted Magnetic Level Indicator with Transmitter is an advanced level measurement solution that combines the reliability of visual level indication with the convenience of continuous remote level monitoring. Designed for tanks, vessels, reactors, and storage systems, the instrument provides both local level indication and an electronic output signal for integration with PLC, DCS, SCADA, and other process control systems.
The system operates on the principle of magnetic coupling. A float containing a permanent magnet moves inside a chamber according to the liquid level. This movement is magnetically transferred to an external indicator for visual level display and simultaneously detected by a transmitter mounted along the chamber. The transmitter converts the liquid level into a standard output signal such as 4–20 mA, enabling real-time monitoring and control from remote locations.
Side Mounted Magnetic Level Indicators with Transmitters are widely used in chemical plants, refineries, oil & gas facilities, pharmaceutical industries, power plants, water treatment systems, and other industrial applications where accurate level measurement and automation are essential.
Applications of Side Mounted Magnetic Level Indicator With Transmitter
- Chemical Processing Plants
- Oil & Gas Facilities
- Petrochemical Industries
- Pharmaceutical Manufacturing
- Water and Wastewater Treatment Plants
- Power Generation Stations
- Food & Beverage Processing
- Storage Tanks and Process Vessels
- Boiler and Condensate Systems
Features of Side Mounted Magnetic Level Indicator With Transmitter
- Continuous visual level indication and remote level transmission
- Magnetic coupling for leak-free and non-contact operation
- High measurement accuracy and reliability
- Suitable for high-pressure and high-temperature applications
- Compatible with PLC, DCS, SCADA, and control systems
- No direct contact between transmitter and process fluid
- Low maintenance and long service life
- Suitable for corrosive, hazardous, and toxic liquids
Available Options
-
Magnetostrictive Level Transmitter
-
Reed Chain Level Transmitter
-
HART Communication Protocol
-
Modbus RTU Communication
-
High and Low Level Alarm Switches
-
Explosion-Proof / Flameproof Design
-
Steam Jacketed Chamber
-
Cryogenic Service Design
-
Customized Chamber Lengths and Materials
Specifications
| Parameter | Details |
|---|---|
| Product Name | Side Mounted Magnetic Level Indicator with Transmitter |
| Measuring Principle | Magnetic Float Operated Level Measurement |
| Mounting Type | Side Mounted |
| Measuring Range | Up to 10 Meters (Higher on Request) |
| Chamber Material | SS 304, SS 316, SS 316L, Carbon Steel, PP, PVDF |
| Float Material | SS 316, Titanium, PP, PVDF |
| Indicator Type | Magnetic Flap / Roller Display |
| Transmitter Type | Magnetostrictive / Reed Chain / Resistive Type |
| Output Signal | 4–20 mA, HART, Modbus (Optional) |
| Accuracy | ±0.5% of Span or Better |
| Operating Pressure | Vacuum to 100 Bar |
| Operating Temperature | -40°C to +450°C (Depending on Design) |
| Connection Type | Flanged, Threaded |
| Power Supply | 24 VDC |
| Display Scale | mm, cm, Inches, Percentage, Volume |
| Protection Class | IP65, IP67, IP68 |
| Hazardous Area Approval | ATEX / IECEx (Optional) |
| Compliance | ASME, DIN, ISO, Industrial Standards |
Benefits
Side Mounted Magnetic Level Indicators with Transmitters provide the dual advantage of local visual level indication and accurate remote level monitoring. The non-contact magnetic transmission system ensures reliable performance without leakage or wear, while the integrated transmitter enables seamless automation and process control. With excellent durability, minimal maintenance requirements, and compatibility with modern control systems, these instruments help improve operational efficiency, process safety, and inventory management across a wide range of industrial applications.
