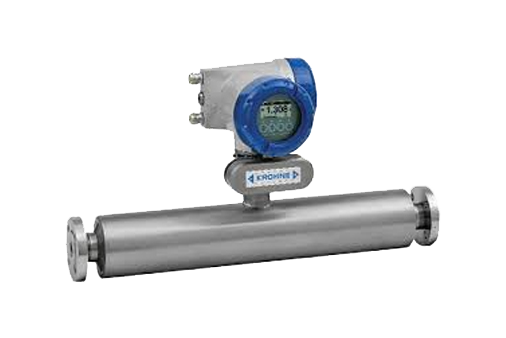

A Mass Flow Meter is an advanced flow measurement instrument designed to directly measure the mass flow rate of liquids, gases, and slurries with exceptional accuracy and reliability. Unlike conventional flow meters that measure volumetric flow, a Mass Flow Meter measures the actual mass of the fluid passing through the system, eliminating the need for additional compensation due to changes in temperature, pressure, or density.
Most Mass Flow Meters operate using the Coriolis Principle, where fluid flowing through vibrating tubes creates a measurable phase shift proportional to the mass flow rate. This technology enables simultaneous measurement of mass flow, density, temperature, and totalized flow, making it one of the most versatile and accurate flow measurement solutions available.
Mass Flow Meters are widely used in industries such as oil & gas, chemical processing, pharmaceuticals, food & beverage, power generation, water treatment, and process manufacturing where precise flow measurement is critical for quality control, efficiency, and regulatory compliance.
Applications of Mass Flow Meter
- Oil & Gas Processing
- Chemical and Petrochemical Industries
- Pharmaceutical Manufacturing
- Food & Beverage Processing
- Custody Transfer Systems
- Fuel Consumption Monitoring
- Water and Wastewater Treatment
- Power Generation Plants
- Process Automation and Batch Control
Features of Mass Flow Meter
- Direct mass flow measurement with high accuracy
- Simultaneous measurement of mass flow, density, and temperature
- No need for pressure or temperature compensation
- Suitable for liquids, gases, and slurries
- High repeatability and long-term stability
- No moving parts for minimal maintenance
- Wide turndown ratio
- Advanced digital communication and diagnostics
Available Options
-
Compact and Remote-Mounted Versions
-
Hygienic Designs for Food & Pharmaceutical Applications
-
High-Pressure and High-Temperature Models
-
Explosion-Proof / Flameproof Versions
-
Multi-Variable Measurement Capability
-
Batch Control and Totalization Functions
-
Advanced Diagnostics and Data Logging
-
Customized Process Connections
Specifications
| Parameter | Details |
|---|---|
| Product Name | Mass Flow Meter |
| Measuring Principle | Coriolis Mass Flow Measurement |
| Size Range | 1 NB to 300 NB (Model Dependent) |
| Measuring Media | Liquids, Gases, Slurries |
| Mass Flow Accuracy | ±0.1% to ±0.2% of Reading |
| Density Accuracy | ±0.0005 g/cm³ |
| Repeatability | ±0.05% of Reading |
| Process Temperature | -200°C to +350°C |
| Process Pressure | Up to 350 Bar |
| Body Material | SS 304, SS 316, SS 316L, Duplex SS |
| Wetted Parts Material | SS 316L, Hastelloy, Titanium (Optional) |
| Connection Type | Flanged, Threaded, Tri-Clamp, Hygienic Connections |
| Output Signals | 4–20 mA, Pulse, Frequency, HART, Modbus, Profibus |
| Display | Digital LCD / TFT Display |
| Power Supply | 24 VDC / 85–265 VAC |
| Protection Class | IP65, IP67, IP68 |
| Certifications | CE, ATEX, IECEx (Model Dependent) |
| Installation | Horizontal or Vertical |
Benefits
Mass Flow Meters provide unmatched accuracy and reliability by directly measuring the mass flow of fluids regardless of changes in process conditions. Their ability to simultaneously measure mass flow, density, and temperature reduces the need for additional instrumentation, lowering installation and maintenance costs. With superior performance, robust construction, and advanced diagnostics, Mass Flow Meters help improve process efficiency, product quality, inventory control, and overall operational productivity.
