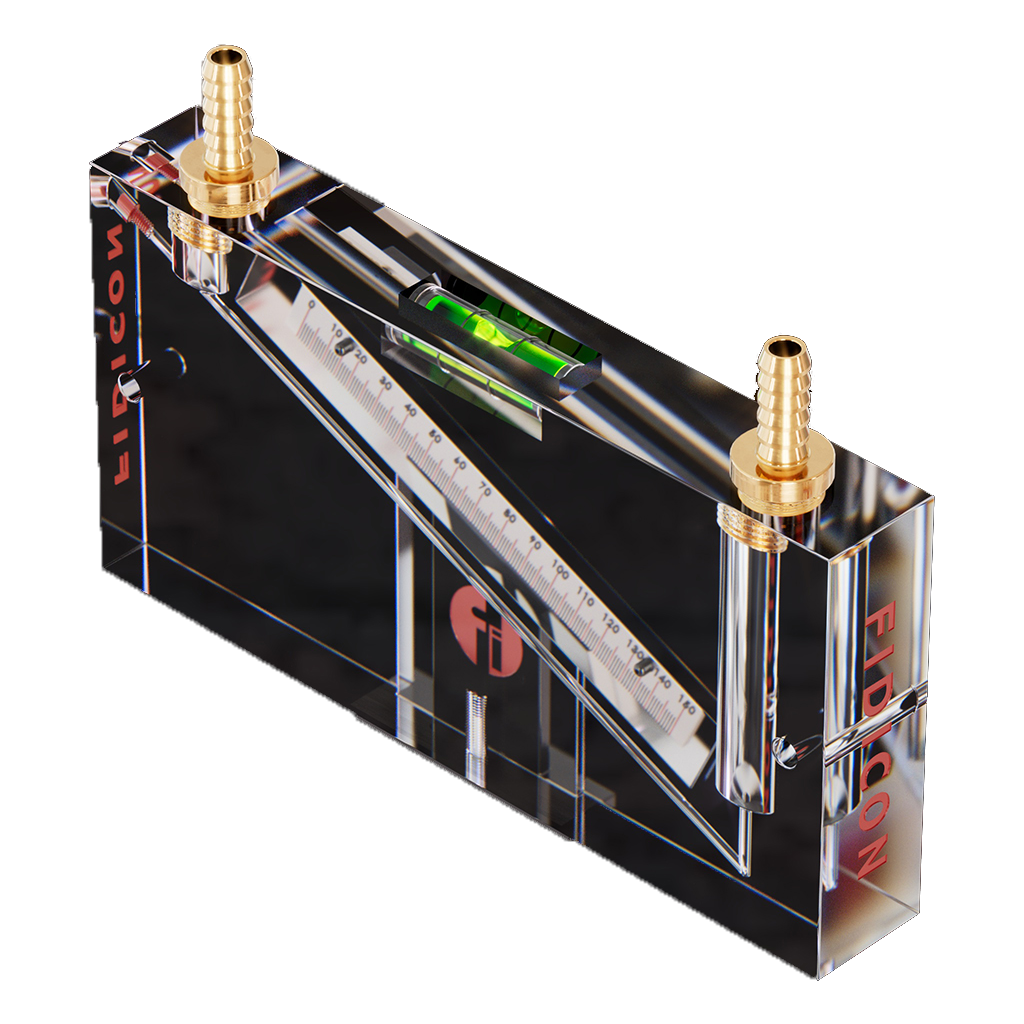

An Inclined Tube Manometer is a precision instrument used for measuring very low differential pressures with high sensitivity and accuracy. It consists of a transparent tube mounted at a specific angle to the horizontal, partially filled with a manometric liquid. The inclined design increases the measurement scale length, allowing small pressure differences to be measured more accurately than conventional vertical manometers.
Inclined Tube Manometers are widely used in laboratories, HVAC systems, clean rooms, air handling units, dust collection systems, ventilation systems, and industrial process applications where precise low-pressure measurement is essential. Their simple construction, reliable operation, and high accuracy make them an ideal choice for monitoring air, gas, and low-pressure process systems.
These instruments provide direct visual pressure indication without requiring any external power source, making them economical, dependable, and easy to maintain.
Applications of Inclined Tube Manometer
- HVAC Systems
- Clean Rooms
- Air Handling Units (AHU)
- Ventilation and Airflow Monitoring
- Dust Collection Systems
- Filter Pressure Drop Measurement
- Laboratory Testing Equipment
- Industrial Process Monitoring
- Furnace and Burner Systems
Features of Inclined Tube Manometer
- High sensitivity for low-pressure measurement
- Accurate and reliable differential pressure indication
- Inclined scale provides enhanced resolution
- No external power supply required
- Easy-to-read graduated scale
- Simple and robust construction
- Low maintenance requirements
- Suitable for air and non-corrosive gas applications
Available Options
-
Customized Pressure Ranges
-
Dual Scale Calibration
-
Acrylic Protective Cover
-
Special Fluids for Enhanced Visibility
-
Panel Mounting Arrangement
-
Customized Scale Units
-
Corrosion-Resistant Construction
-
Calibration Certificate
Specifications
| Parameter | Details |
|---|---|
| Product Name | Inclined Tube Manometer |
| Measuring Principle | Hydrostatic Pressure Measurement |
| Type | Inclined Liquid Column Manometer |
| Measuring Range | 0–10 mmWC to 0–500 mmWC (Customized Ranges Available) |
| Accuracy | ±1% of Full Scale |
| Scale Type | Direct Reading Graduated Scale |
| Tube Material | Clear Acrylic / Glass |
| Body Material | Aluminum, ABS, Powder-Coated Steel |
| Manometric Fluid | Red Gauge Fluid, Mercury-Free Fluid |
| Mounting Type | Wall Mounted / Panel Mounted |
| Operating Temperature | 0°C to 60°C |
| Process Media | Air and Non-Corrosive Gases |
| Connection Size | 6 mm, 8 mm, 10 mm Hose Connection |
| Scale Units | mmWC, mmHg, Pa, kPa, Inches WC |
| Power Requirement | Not Required |
| Visibility | High Contrast Scale for Easy Reading |
Benefits
Inclined Tube Manometers provide highly accurate measurement of low differential pressures where standard gauges may not offer sufficient resolution. The inclined tube design amplifies small liquid movements, enabling precise readings for airflow, filter monitoring, and ventilation applications. With no moving parts, no power requirement, and minimal maintenance needs, these manometers offer a cost-effective and dependable solution for low-pressure measurement in industrial and laboratory environments.
