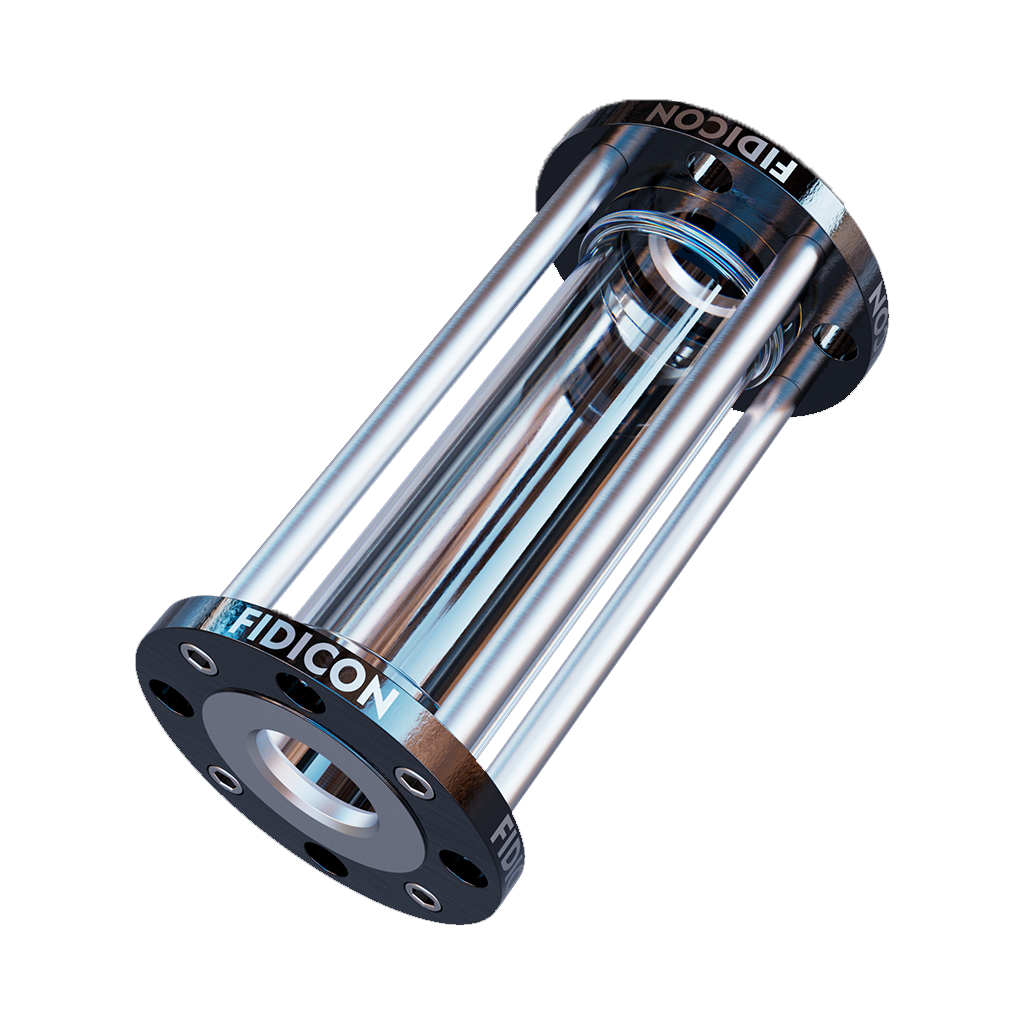

A Full View Sight Glass is an essential process monitoring device designed to provide a clear and unobstructed view of fluids flowing through pipelines and processing systems. It allows operators to visually inspect the flow, color, clarity, and condition of liquids in real time, helping ensure smooth and efficient operation of industrial processes.
Manufactured using high-quality materials and precision engineering, Full View Sight Glasses are widely used in the chemical, pharmaceutical, food processing, beverage, water treatment, and petrochemical industries. Their transparent viewing section enables continuous monitoring without interrupting the process flow, reducing downtime and improving operational safety.
Applications Full View Sight Glass
- Chemical processing plants
- Pharmaceutical manufacturing
- Food and beverage industries
- Water and wastewater treatment systems
- Petrochemical and refinery operations
- Process piping and fluid handling systems
Features Full View Sight Glass
- 360° full-view visibility for easy process inspection
- Robust and durable construction
- Corrosion-resistant materials for demanding applications
- Leak-proof design for safe operation
- Suitable for high-pressure and high-temperature applications
- Available in various sizes and end connections
- Easy installation and maintenance
Available Options
-
LED illumination arrangement
-
Wiper assembly for continuous cleaning
-
Jacketed design for temperature-sensitive fluids
-
Higher pressure and temperature ratings
-
Customized sizes and connections
Specifications
| Parameter | Details |
|---|---|
| Product Name | Full View Sight Glass |
| Size Range | 15 NB to 300 NB (½" to 12") |
| Body Material | SS 304, SS 316, SS 316L, Carbon Steel (Optional) |
| Glass Material | Toughened Borosilicate Glass |
| End Connection | Flanged, Threaded, TC End, Socket Weld, Butt Weld |
| Pressure Rating | Up to 10 Bar (Higher on Request) |
| Temperature Range | Up to 200°C (Depending on Gasket & Design) |
| Gasket Material | PTFE, EPDM, Silicone, Viton |
| Viewing Type | Full 360° Transparent View |
| Surface Finish | Matt, Mirror Polish, Electro-Polished |
| Mounting Position | Horizontal or Vertical |
| Design Standard | As per Industrial Standards |
| Testing | Hydrostatic & Leak Tested |
| Application Media | Water, Chemicals, Solvents, Oils, Food Products, Pharmaceutical Liquids |
Benefits
The Full View Sight Glass enables continuous visual monitoring of fluid flow, helping detect contamination, color changes, air bubbles, sedimentation, or flow interruptions. Its robust construction and clear visibility make it a reliable solution for process control, quality assurance, and preventive maintenance across various industries.
