A Float and Board Type Magnetic Level Indicator is a reliable and highly visible level monitoring system designed to provide continuous indication of liquid levels in storage tanks, process vessels, and reservoirs. Combining the proven buoyancy principle of a float-operated mechanism with magnetic level indication technology, this system ensures accurate and maintenance-friendly level monitoring without the need for external power.

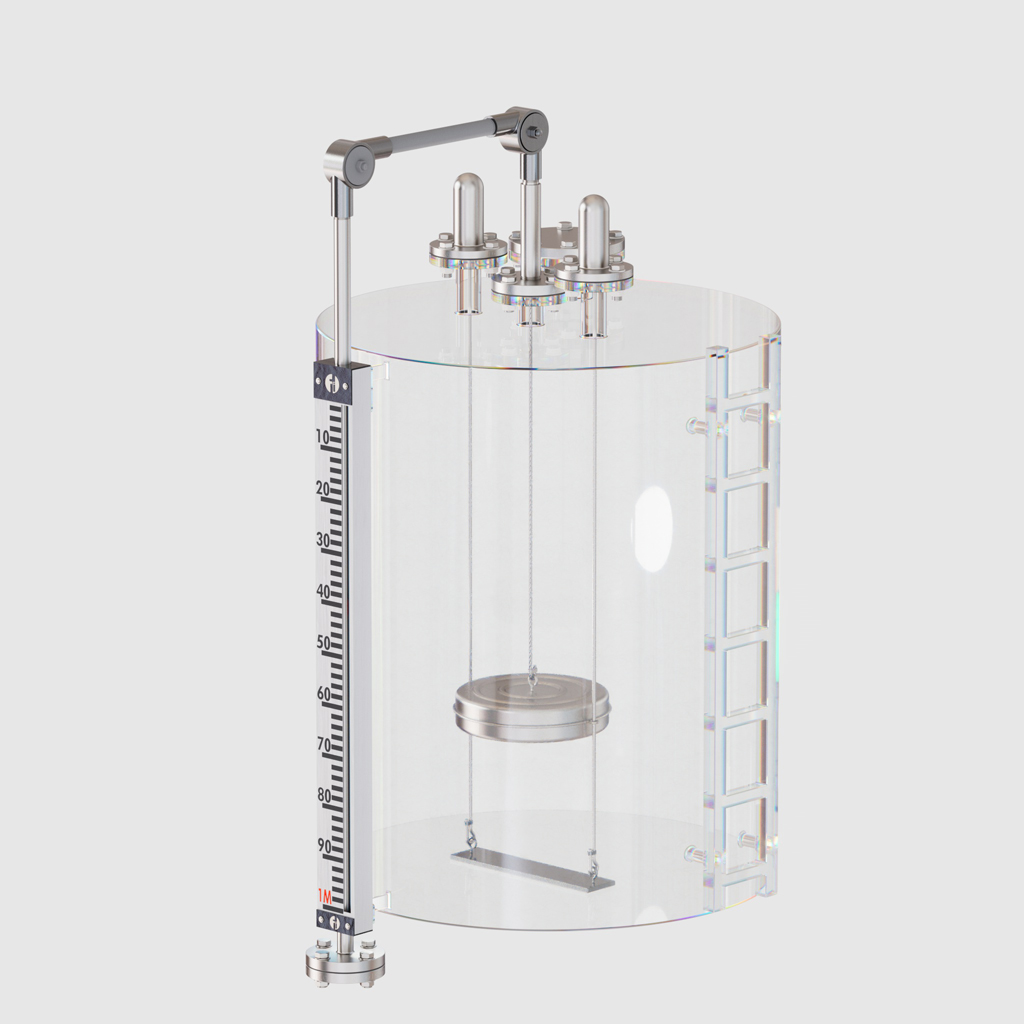

The indicator operates using a float that moves with the liquid level inside the tank. The float is magnetically coupled to an external display mechanism, which continuously indicates the liquid level on a calibrated board or magnetic scale. This non-contact indication system eliminates direct mechanical linkage between the process fluid and the display, resulting in enhanced safety, reliability, and longer service life.
Float and Board Type Magnetic Level Indicators are widely used in water treatment plants, chemical processing industries, oil & gas facilities, power plants, pharmaceutical units, and storage terminals where clear and accurate level monitoring is essential.
Applications of Float And Board Type Magnetic Level Indicator
- Water Storage and Distribution Systems
- Chemical Storage Tanks
- Oil and Fuel Storage Facilities
- Power Generation Plants
- Refineries and Petrochemical Industries
- Pharmaceutical Manufacturing
- Process Vessels and Reactors
- Fire Water Tanks
- Municipal and Industrial Water Treatment Plants
Features of Float And Board Type Magnetic Level Indicator
- Continuous and accurate liquid level indication
- Magnetic coupling for non-contact operation
- No external power supply required
- Clear visibility from long distances
- Suitable for corrosive, hazardous, and high-temperature liquids
- Rugged and weather-resistant construction
- Low maintenance and long service life
- Customizable scale and display options
Available Options
-
Magnetic Flap Display System
-
Level Switch Integration
-
4–20 mA Level Transmitter Output
-
High-Pressure and High-Temperature Designs
-
Explosion-Proof Accessories
-
Customized Calibration Scales
-
Weatherproof and UV-Resistant Display Boards
-
Special Material Construction for Corrosive Media
Specifications
| Parameter | Details |
|---|---|
| Product Name | Float and Board Type Magnetic Level Indicator |
| Measuring Principle | Magnetic Float Operated Level Indication |
| Mounting Type | Top Mounted / Side Mounted |
| Measuring Range | Up to 30 Meters or Customized |
| Float Material | SS 304, SS 316, Polypropylene, HDPE |
| Chamber Material | SS 304, SS 316, SS 316L, Carbon Steel |
| Indicator Board Material | Aluminum, FRP, Powder-Coated MS |
| Display Type | Magnetic Flap / Magnetic Scale Board |
| Scale Calibration | mm, cm, Meters, Liters, Percentage, Volume |
| Accuracy | ±1% of Full Scale |
| Operating Temperature | Up to 350°C (Depending on Design) |
| Operating Pressure | Up to 40 Bar (Higher on Request) |
| Connection Type | Flanged, Threaded |
| Visibility Distance | Long-Distance Readability |
| Power Requirement | Not Required |
| Optional Outputs | Reed Switches, 4–20 mA Transmitter, Level Alarms |
| Compliance | Industrial and Customer-Specific Standards |
Benefits
Float and Board Type Magnetic Level Indicators offer a dependable and power-free solution for liquid level monitoring in industrial applications. The magnetic coupling mechanism provides safe, leak-free, and maintenance-friendly operation while ensuring clear level visibility. With their robust construction, excellent accuracy, and suitability for harsh process conditions, these indicators help improve operational safety, inventory management, and process efficiency across a wide range of industries.
