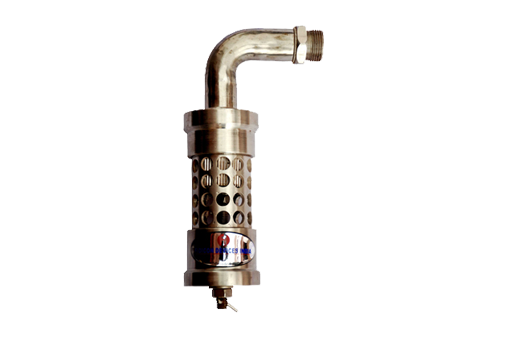

Flame Arrestor (Drum Type)

A Drum Type Flame Arrestor is a specialized safety device designed to prevent the transmission of flames and explosions through vent lines, storage tanks, process vessels, and atmospheric venting systems handling flammable gases and vapors. The drum-shaped housing contains a high-performance flame arresting element that safely extinguishes flame fronts while allowing the free flow of gases during normal operation.

Drum Type Flame Arrestors are widely used in petroleum storage terminals, chemical plants, refineries, pharmaceutical facilities, solvent storage systems, biogas plants, and other industrial applications where protection against fire and explosion hazards is essential. Their robust construction and large flame arresting surface area make them particularly suitable for high-flow venting applications.

Designed in accordance with recognized international standards, Drum Type Flame Arrestors provide reliable protection against external ignition sources and help ensure safe operation of tanks, vessels, and vent systems containing combustible gases and vapors.

Applications of Flame Arrestor (Drum Type)

Petroleum Storage Tanks
Chemical Storage Facilities
Oil & Gas Installations
Refineries and Petrochemical Plants
Solvent Storage Tanks
Pharmaceutical Manufacturing Units
Biogas and Landfill Gas Systems
Paint and Coating Industries
Bulk Liquid Storage Terminals
Process Vessel Vent Systems

Features of Flame Arrestor (Drum Type)

Prevents flame propagation into tanks and process systems
Large flame arresting area for high flow capacity
Low pressure drop during venting operations
Robust drum-type construction for industrial applications
Corrosion-resistant materials available
Easy inspection, cleaning, and maintenance
Suitable for atmospheric venting systems
Designed to meet international safety standards

Available Options

Weather Hood / Rain Cover
Stainless Steel Construction
Bird and Insect Screen Protection
Drain Connections
High-Corrosion Resistant Materials
High-Temperature Designs
Special Alloy Construction (Hastelloy, Monel, Duplex SS)
Customized Vent Sizes and Connections
Protective Industrial Coatings

Specifications

Parameter	Details
Product Name	Drum Type Flame Arrestor
Type	End of Line / Vent Line Flame Arrestor
Installation	Tank Vent, Vessel Vent, Atmospheric Vent
Size Range	25 NB to 1500 NB (1" to 60")
Body Material	Carbon Steel, SS 304, SS 316, SS 316L, Aluminum
Flame Element Material	SS 304, SS 316, SS 316L
Connection Type	Flanged, Threaded
Flange Standard	ANSI, ASME, DIN, BS, IS
Operating Pressure	Atmospheric to Low Pressure Applications
Operating Temperature	-40°C to +250°C
Suitable Media	Flammable Gases, Vapors, Hydrocarbon Fumes
Element Design	Crimped Ribbon / Corrugated Metal Element
Flow Capacity	High Capacity Venting Design
Pressure Drop	Low Resistance Flow Design
Mounting Orientation	Vertical Installation
Testing	Flame Transmission Test, Flow Test, Pressure Test
Compliance	ISO 16852, API 2000, ATEX, EN Standards

Benefits

Drum Type Flame Arrestors provide effective protection against flame propagation while maintaining efficient venting of gases and vapors. Their large flame arresting element offers excellent flow capacity with minimal pressure loss, making them ideal for storage tank and vent system applications. By preventing external flames from entering flammable vapor spaces, these flame arrestors help protect personnel, equipment, and facilities while ensuring compliance with industrial safety regulations.

Working Principle

During normal operation, vapors and gases pass freely through the flame arrestor element and are safely vented to the atmosphere. If an external ignition source or flame reaches the vent opening, the flame enters the flame arresting element where the heat is absorbed and dissipated by the metallic passages. This reduces the flame temperature below the ignition point of the gas mixture, extinguishing the flame and preventing it from reaching the protected tank, vessel, or process system.
