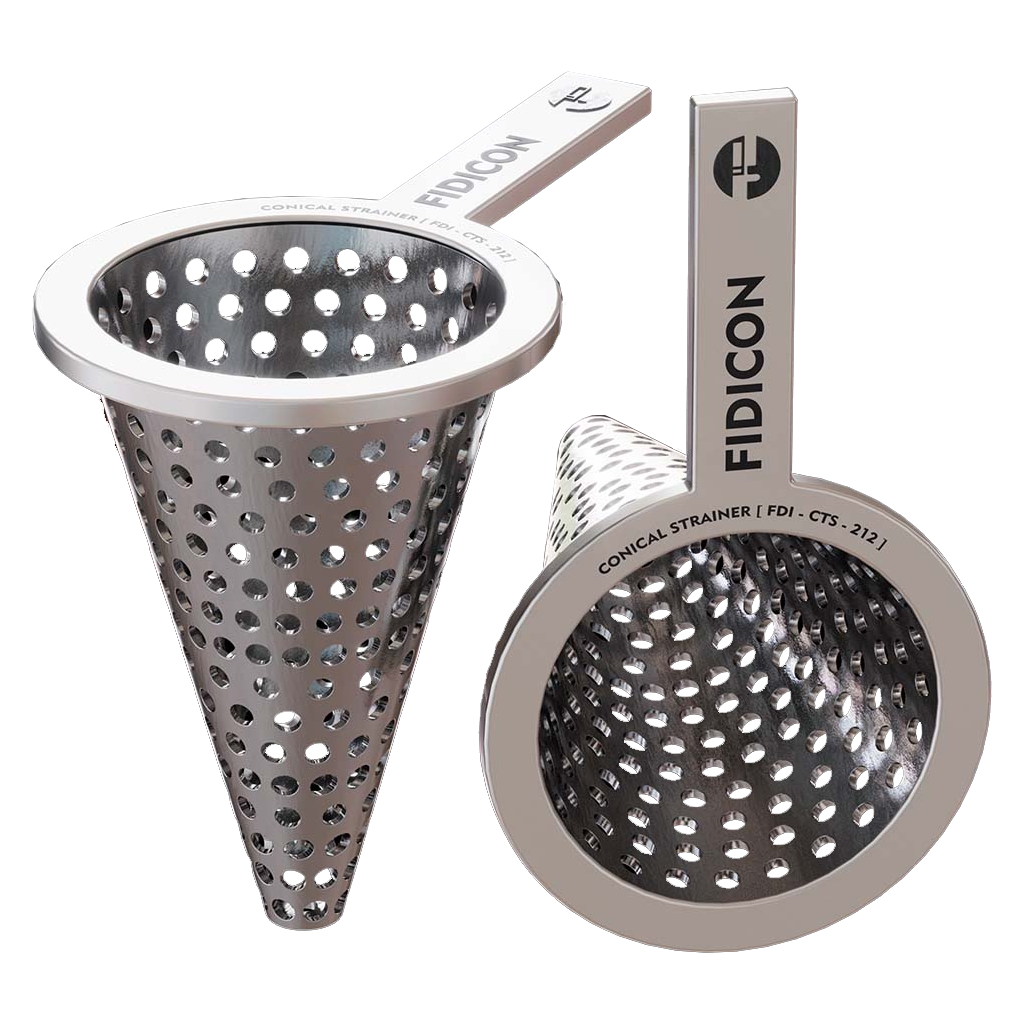

A Conical Type Strainer, commonly known as a Temporary Cone Strainer or Cone Filter, is a filtration device designed to remove debris, weld slag, scale, rust, and other unwanted particles from pipelines during system start-up, commissioning, and maintenance operations. Its cone-shaped design provides a large filtration area while maintaining efficient flow characteristics and minimal pressure drop.
Conical Type Strainers are widely used in industries such as oil & gas, petrochemicals, power generation, chemical processing, pharmaceuticals, water treatment, and process plants. Installed between pipe flanges, these strainers protect pumps, valves, flow meters, compressors, turbines, and other critical equipment from damage caused by foreign particles during initial plant operation.
Manufactured from high-quality stainless steel and other corrosion-resistant materials, Conical Type Strainers offer reliable filtration performance and can be customized to meet specific process requirements.
Applications of Conical Type Straine
- Pipeline Commissioning and Start-Up Operations
- Oil & Gas Processing Plants
- Petrochemical Facilities
- Power Generation Plants
- Chemical Processing Industries
- Water and Wastewater Treatment Systems
- Pump and Compressor Protection
- Turbine and Flow Meter Protection
Features of Conical Type Straine
- Efficient removal of debris and contaminants from pipelines
- Cone-shaped design provides a large filtration area
- Low pressure drop and high flow efficiency
- Easy installation between flanged connections
- Durable and corrosion-resistant construction
- Available with perforated, mesh-lined, or combination screens
- Suitable for temporary and startup filtration applications
- Customizable sizes and filtration ratings
Available Options
-
Cone Strainer with Handle for Easy Removal
-
Flat Type Temporary Strainers
-
Basket Cone Designs
-
Fine Mesh and Multi-Layer Filtration Screens
-
High-Pressure and High-Temperature Models
-
Special Alloy Construction (Monel, Hastelloy, Inconel, Duplex SS)
-
Customized Perforation and Mesh Combinations
-
Identification Tags and Flow Direction Marking
Specifications
| Parameter | Details |
|---|---|
| Product Name | Conical Type Strainer |
| Type | Temporary Cone Strainer |
| Size Range | 15 NB to 2000 NB (½" to 80") |
| Material of Construction | SS 304, SS 316, SS 316L, Carbon Steel, Duplex Stainless Steel |
| Screen Type | Perforated, Wire Mesh, Combination Type |
| Mesh Size | 20 to 500 Mesh (Application Dependent) |
| Perforation Size | 1 mm to 25 mm |
| End Connection | Installed Between Flanges |
| Flange Standard Compatibility | ANSI, ASME, DIN, BS, IS |
| Pressure Rating | ANSI 150# to 2500# |
| Operating Temperature | Up to 600°C (Depending on Material) |
| Flow Direction | Inside-Out or Outside-In Design |
| Open Area | Customized as per Flow Requirement |
| Surface Finish | Standard / Pickled & Passivated / Polished |
| Testing | Dimensional and Material Inspection |
| Compliance | ASME, ANSI, DIN, ISO Standards |
Benefits
Conical Type Strainers provide a simple and cost-effective solution for protecting critical equipment during pipeline commissioning and maintenance operations. By capturing debris before it reaches sensitive components, they help prevent equipment damage, reduce downtime, improve operational safety, and ensure smooth system startup. Their robust design, easy installation, and customizable filtration options make them an essential component in industrial piping systems.
