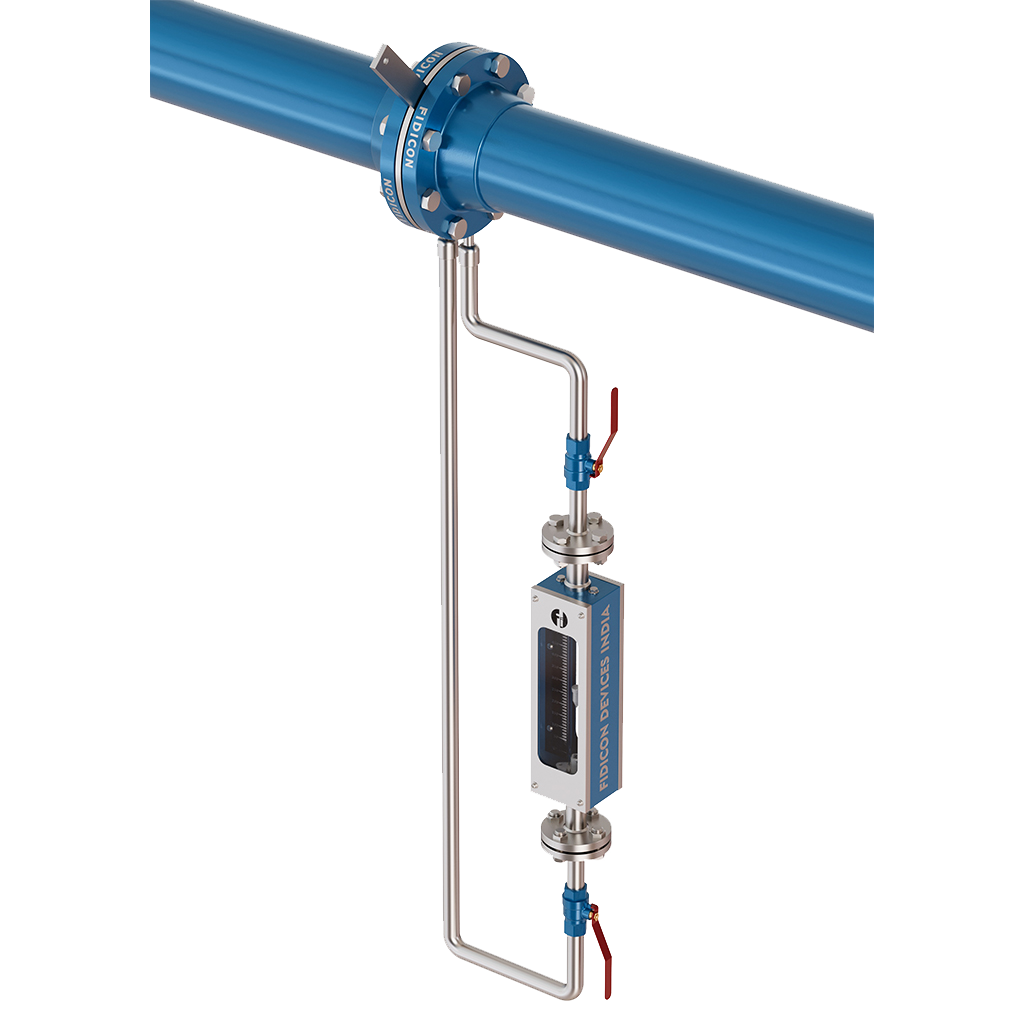

A By Pass Rotameter is a highly efficient flow measuring instrument designed for measuring high flow rates by diverting a portion of the flow through a calibrated rotameter tube. It ensures accurate flow indication while handling large process flow capacities in various industrial applications.
The By Pass Rotameter works on the variable area principle and is widely used where direct measurement of high flow rates through a standard rotameter is not practical. It provides reliable performance, low pressure loss, and easy monitoring of process flow.
Applications of By Pass Rotameter
By Pass Rotameters are widely used in:
- Water Treatment Plants
- Chemical Processing Industries
- Pharmaceutical Industries
- Petrochemical Plants
- Boiler Feed Systems
- Cooling Water Circulation Systems
- Gas Distribution Systems
- Industrial Process Control
- HVAC Systems
Features of By Pass Rotameter
- Suitable for high flow measurement applications
- Accurate and reliable flow indication
- Robust and durable construction
- Low pressure drop
- Easy installation and maintenance
- Corrosion-resistant materials available
- Suitable for liquid and gas flow measurement
- Compact and industrial-friendly design
- Long operational life
Advantages of By Pass Rotameter
-
Ideal for large flow rate measurement
-
Cost-effective solution for high-capacity systems
-
Reliable and stable operation
-
Minimal maintenance requirement
-
Easy flow monitoring
-
Customizable for different industrial applications
-
High durability and corrosion resistance
Specifications
| Parameter | Details |
|---|---|
| Measuring Principle | Variable Area |
| Flow Media | Liquids & Gases |
| Tube Material | Glass / Acrylic / Metal |
| Body Material | SS304 / SS316 / PVC / PP |
| Connection Type | Flanged / Threaded |
| Flow Range | Customized as per requirement |
| Accuracy | ±2% F.S. or better |
| Operating Pressure | Standard / High Pressure |
| Operating Temperature | Application specific |
| Mounting Position | Vertical |
Why Choose Our By Pass Rotameter?
Our By Pass Rotameters are manufactured with precision engineering and high-quality materials to deliver accurate flow measurement and long-lasting performance. Designed to meet industrial standards, these rotameters are suitable for demanding process conditions and customized application requirements.
We provide a wide range of sizes, materials, and configurations to match your process needs efficiently.
