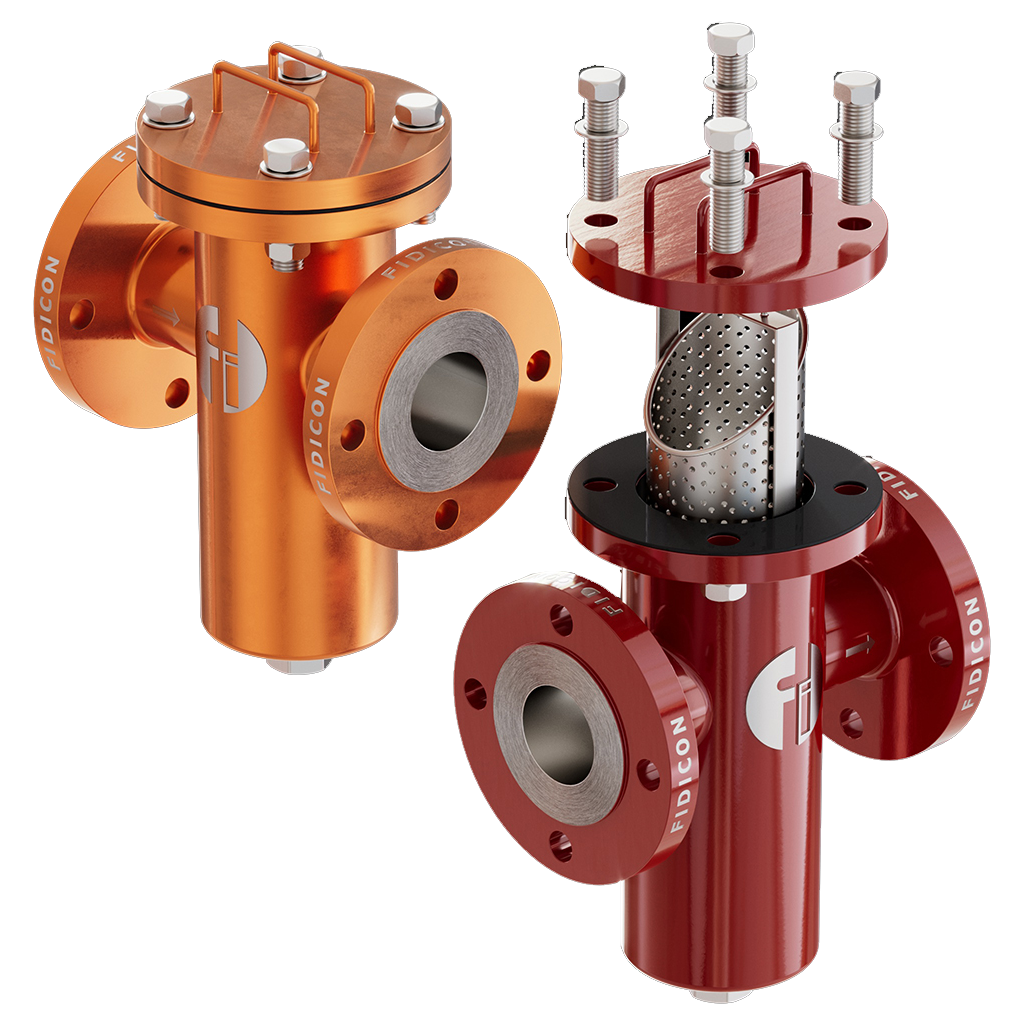

A Basket Type Strainer is a highly efficient filtration device designed to remove solid particles, debris, rust, scale, and other contaminants from liquid pipelines and process systems. Featuring a large basket-shaped filtering element, this strainer provides a greater filtration area, resulting in lower pressure drop, higher dirt-holding capacity, and extended service intervals compared to other strainer types.
Basket Type Strainers are widely used in industries such as oil & gas, chemical processing, pharmaceuticals, food & beverage, water treatment, power generation, and petrochemical plants. They are installed upstream of pumps, valves, flow meters, heat exchangers, and other critical equipment to protect them from damage caused by unwanted particles.
Designed for durability and easy maintenance, Basket Type Strainers allow quick removal and cleaning of the filter basket, ensuring uninterrupted process performance and reduced maintenance costs.
Applications of Basket Type Strainer
- Water and Wastewater Treatment Plants
- Chemical and Petrochemical Industries
- Oil & Gas Processing Facilities
- Power Generation Plants
- Pharmaceutical Manufacturing
- Food & Beverage Processing
- Cooling Water Systems
- Heat Exchanger Protection
- Pump and Valve Protection Systems
Features of Basket Type Strainer
- High dirt-holding capacity for extended operating life
- Large filtration area with minimal pressure loss
- Efficient removal of solid contaminants and debris
- Robust construction for demanding industrial applications
- Easy basket removal and cleaning
- Available in simplex and duplex configurations
- Suitable for high-flow applications
- Wide range of materials and filtration options
Available Options
-
Simplex Basket Strainers
-
Duplex Basket Strainers for Continuous Operation
-
Fine Mesh and Heavy-Duty Perforated Baskets
-
Magnetic Basket Inserts
-
Quick-Opening Covers
-
Drain and Vent Connections
-
Special Alloy Construction (Monel, Hastelloy, Duplex SS, Inconel)
-
Customized Filtration Ratings and Sizes
Specifications
| Parameter | Details |
|---|---|
| Product Name | Basket Type Strainer |
| Type | Simplex / Duplex Basket Strainer |
| Size Range | 25 NB to 1200 NB (1" to 48") |
| Body Material | Cast Iron, Cast Steel, SS 304, SS 316, SS 316L, Duplex Stainless Steel |
| Basket Material | SS 304, SS 316, SS 316L |
| Filtration Element | Perforated Basket / Wire Mesh Basket |
| Mesh Size | 20 to 500 Mesh (Application Dependent) |
| Perforation Size | 1 mm to 25 mm |
| End Connection | Flanged, Threaded, Butt Weld |
| Flange Standard | ANSI, ASME, DIN, BS, IS |
| Pressure Rating | ANSI 150#, 300#, 600#, 900# |
| Operating Temperature | Up to 400°C (Depending on Material) |
| Operating Pressure | Up to 100 Bar |
| Cover Type | Bolted Cover with Gasket |
| Gasket Material | PTFE, Graphite, CAF, Spiral Wound |
| Testing | Hydrostatic and Leakage Tested |
| Compliance | ASME, ANSI, DIN, ISO Standards |
Benefits
Basket Type Strainers provide superior filtration performance by effectively removing contaminants before they can damage downstream equipment. Their large filtration area reduces maintenance frequency, minimizes pressure drop, and improves overall system efficiency. With easy cleaning, durable construction, and versatile design options, Basket Type Strainers are an ideal solution for protecting critical process equipment and ensuring reliable plant operation across a wide range of industrial applications.
