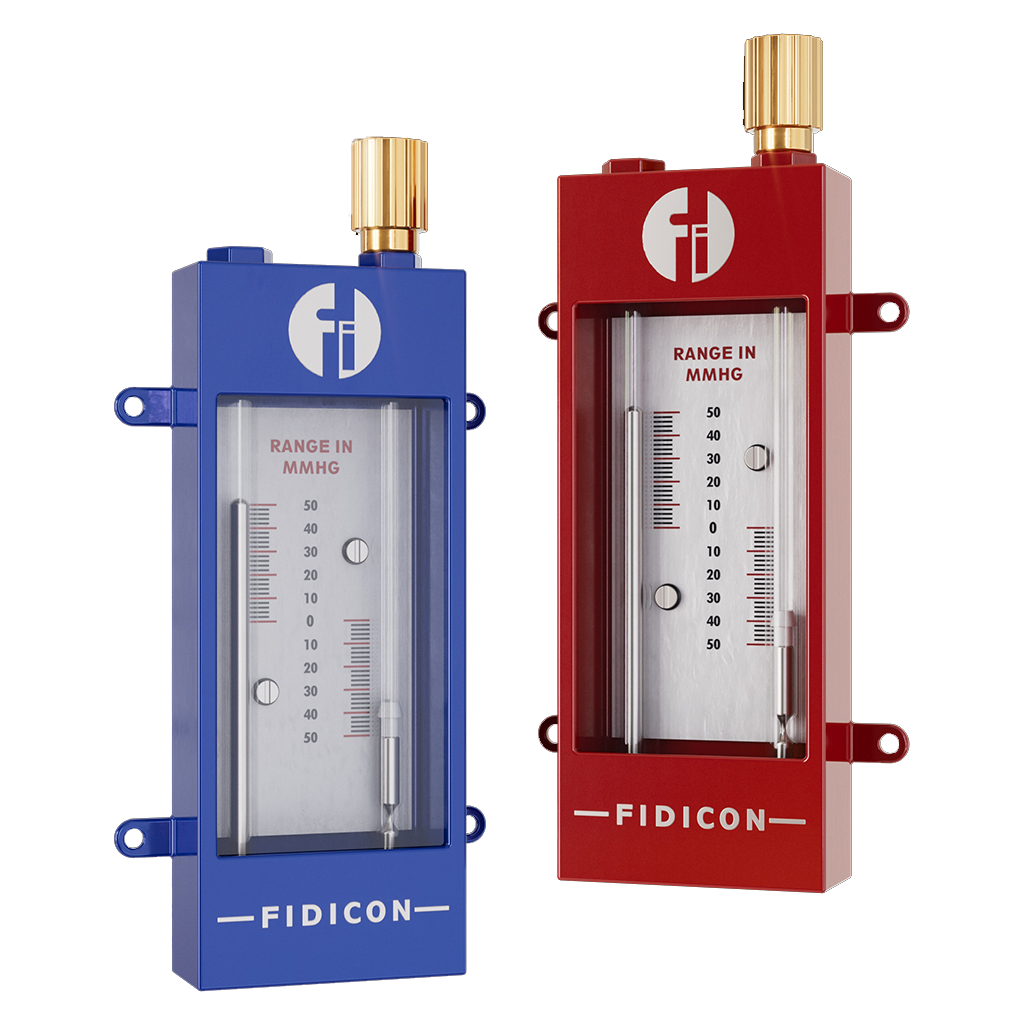

An Absolute Manometer is a precision pressure measuring instrument used to measure absolute pressure, which is the pressure referenced against a perfect vacuum. Unlike gauge pressure instruments that measure pressure relative to atmospheric pressure, an Absolute Manometer provides accurate pressure readings independent of atmospheric variations, making it ideal for scientific, laboratory, and industrial applications requiring precise pressure measurement.
The instrument typically consists of a sealed reference chamber maintained at a near-perfect vacuum and a pressure sensing element. The pressure exerted by the process medium is measured against this vacuum reference, providing a true indication of absolute pressure.
Absolute Manometers are widely used in vacuum systems, meteorological studies, aerospace applications, pharmaceutical manufacturing, chemical processing, research laboratories, and calibration facilities where accurate pressure measurement is critical for process control and quality assurance.
Applications of Absolute Manometer
- Vacuum Systems
- Research and Development Laboratories
- Pharmaceutical Manufacturing
- Chemical Processing Plants
- Aerospace and Aviation Industries
- Calibration Laboratories
- Meteorological and Environmental Monitoring
- Scientific Instrumentation
- Process Control Systems
Features of Absolute Manometer
- Direct measurement of absolute pressure
- High accuracy and reliability
- Independent of atmospheric pressure variations
- Suitable for vacuum and low-pressure applications
- Stable and repeatable performance
- Robust construction for industrial and laboratory use
- Easy installation and operation
- Long service life with minimal maintenance
Available Options
-
Liquid Column Absolute Manometers
-
Bellows-Type Absolute Manometers
-
Capsule-Type Absolute Manometers
-
Digital Absolute Pressure Indication
-
Vacuum Measurement Models
-
Custom Pressure Ranges
-
Corrosion-Resistant Construction
-
Calibration Certificates
-
Laboratory and Industrial Versions
Specifications
| Parameter | Details |
|---|---|
| Product Name | Absolute Manometer |
| Measuring Principle | Absolute Pressure Measurement |
| Pressure Reference | Sealed Vacuum Reference Chamber |
| Measurement Type | Absolute Pressure |
| Pressure Range | Vacuum to 10 Bar Absolute (Higher Ranges Available) |
| Accuracy | ±0.25% to ±1.0% of Full Scale |
| Scale Type | Analog / Graduated Scale |
| Sensing Element | Bellows, Diaphragm, Liquid Column or Capsule Type |
| Wetted Parts Material | SS 304, SS 316, Brass (Application Dependent) |
| Housing Material | Stainless Steel, Aluminum |
| Connection Type | Threaded, Flanged |
| Connection Size | ¼", ½", BSP, NPT |
| Operating Temperature | -20°C to +120°C |
| Mounting Type | Panel Mounted / Wall Mounted / Direct Mounted |
| Display Unit | Bar(a), mbar(a), mmHg(a), Torr, Pa, kPa |
| Power Requirement | Not Required (Mechanical Models) |
| Compliance | ISO, ASME, Industrial Standards |
Benefits
Absolute Manometers provide highly accurate and dependable pressure measurements by eliminating the influence of atmospheric pressure fluctuations. This makes them ideal for critical applications where precise absolute pressure data is essential. Their stable performance, reliable operation, and versatility across a wide range of pressure ranges help improve process control, research accuracy, product quality, and operational efficiency in industrial and laboratory environments.
Working Principle
An Absolute Manometer measures pressure against a sealed vacuum reference. When process pressure is applied, the sensing element responds to the pressure difference between the process medium and the vacuum chamber. This displacement is translated into a pressure reading, providing a true measurement of absolute pressure regardless of changes in atmospheric conditions.
